Impex Pulverizer Details

Pulverizer range and specification

Model
Motor (HP)
RPM (Machine)
Fineness
(Mesh Size)
Output Range (Kg/Hr)
VIP-12
7.5
2800-3500
100-300
50 - 60
VIP-16
10
2800-3500
100-300
80 - 100
VIP-20
10-15
2200
75 - 300
80 - 300
VIP-25
20-30
2000
75 - 300
150 - 450
VIP-32 (wc)
50-60
1800
75 - 300
400 - 900
VIP-42
80-100
1800
75 - 300
600 - 1500

Use of Pulverizer:

Industries TypeMaterials
Chemical:Pigments, Intermediates, Dyes, organic, etc
Agriculture:Spices, Guar gum, Flour, Black Gram, Sandalwood, Herbal, Turmeric, and Snuff etc.
Minerals:Bauxite, Calcite, Coal, Lime Stone, Soap Stone, China Clay, Dolomite, Bentonite, Gypsum, POP, Marble etc.
Metal:C.I. Powder, Ferro Alloys, Zinc Dross, Brass Dross, etc.
Other:Pesticides and Insecticide Prawn Feed, Precipitated Silica, Carbon Black etc
All above data are nominal only. It is vary case to case based on many different parameters.

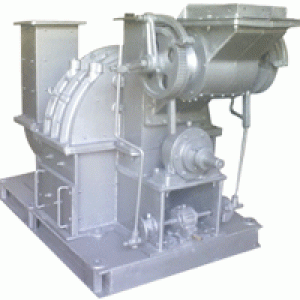

ABOUT IMPEX PULVERIZER/MINI PULVERIZER

Prince impex pulverizer is to make powder of different material. Pulverization in this is done by continuous impact of rotating hammers against grinding liners. Raw material feed in rotary feeder from inlet hopper and spills into the grinding chamber. Strong hammering breaks lumps into small particles. At the same time air stream blowing through the pulverizer carries the ground material towards outlet. Whizzer classifier doesn’t allow oversize particles to pass and returned them into the grinding chamber. They are re-grind and reduced up-to acceptable size. Fan is working for convey particles passed from Whizzer and send it to cyclone collector. Three-way connection Cyclone & dust collector (fabric type) provides clear air to the mill and keeps entire operation free from dust too.

ABOUT MIRACLE MILL/HAMMER MILL

Miracle mill/ Hammer Mill is useful for high production. Fineness isn’t possible to achieve as much as pulverizer. Miracle mill / Hammer mill is similar to impex pulverizer. Perforated liner is fitted in bottom half of grinding chamber. Hole diameter and pitch can be decide based on mesh size requirement. Whizzer isn’t require because material is classified by perforated liner.

About major components/unit of Impex pulverizer/Mini Pulverizer/Miracle Mill/Hammer Mill.

  • MAIN BODY: Main body (grinding chamber) made out of CI. It includes replaceable grinding liner/plates of different require shapes for different material. Metal trap would remove heavy foreign material.
  • FEEDER: Automatic feeder having with variable speed star Feeder is provided for controlled feed.
  • ROTOR: Rotor is made from thick plate fitted on main shaft. Hammers are hinged on it. It prevents breakage of hammers. Main shaft is supported by heavy-duty bearings fitted in dust tight housings.
  • WHIZZER: whizzer is conical shaped having adjustable whizzer blades for adjust desire fineness in the range of 100-300 meshes, depending upon the material.
  • BLOWER: Blower is heavy-duty long life bolted blade to get replace quickly.
  • CYCLONE COLLECTOR: Made for excellent and efficient separation.
