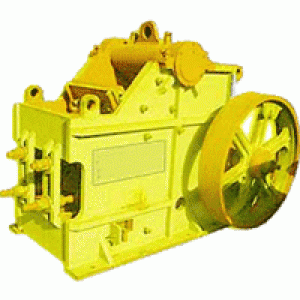

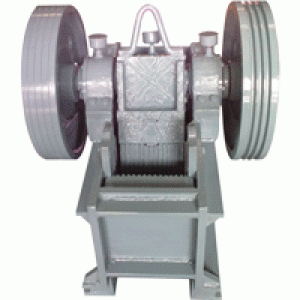

Jaw Crusher
Jaw Crusher Details
Jaw Crusher Range and Specification
Single toggle (Grease lubrication).
| Model | Output (Ton/Hr) Out let gap (MM) | RPM | Motor | Feed size Max(MM) | Inlet Size (MM) | |||||
60 | 50 | 40 | 25 | 20 | 15 | |||||
VJC16x9 | 18 | 16 | 14 | 12 | 10 | -- | 300 | 25 | 180 | 400 x 225 |
VJC12x7 | -- | -- | 10 | 8 | 6 | -- | 300 | 15 | 140 | 300 x 175 |
VJC10x6 | -- | -- | 4 | 3 | 2 | 1.5 | 300 | 10 | 125 | 250 x 150 |
VJC8x4 | -- | -- | -- | 1.2 | 0.8 | 0.5 | 300 | 5 | 75 | 200 x 100 |
Double toggle (Oil lubrication).
Model | Output (Ton/Hr) Out let gap (MM) | RPM | Motor | Feed size Max(MM) | Inlet Size (MM) | |||||
20 | 25 | 31 | 37 | 50 | 62 | |||||
VJC20x12 | 13 | 16 | 19 | 22 | 30 | 38 | 350/380 | 25 | 250 | 500x300 |
All the data given are nominal only and based on stone of 1600 kg/m2 density . It may vary widely from case to case depending upon many factors.
Use of Jaw Crusher:
Varahi Industries Jaw Crusher is to crush for Crushing wide variety of hard material. Lime Stone, Marble, Granite, Rock, Dolomite, Bentonite, Coal, Ferro-Alloys etc.
ABOUT Single Toggle JAW CRUSHER
Heavy duty with robust design single toggle Jaw Crusher is having Mild steel fabricated body. Body is strengthened to withstand heavy load. Main (Eccentric) shaft is running on antifriction bearings. Jaw plates and chick plates are made from highly wear resistance manganese steel. Oscillating Jaw is fabricated from mild steel, which is fitted on main shaft. Both flywheels are work as pulleys. Flat OD wheels are for flat belt drive and V-grooved wheels is for V-belt drive. Out let gap can be varied easily by add OR remove mild steel plates between toggle plate and main body.
ABOUT Double Toggle JAW CRUSHER
Heavy duty with robust design double toggle Jaw Crusher is having Mild steel fabricated strong box beam designed body to withstand heavy load. Eccentric shaft made from alloy steel is running on antifriction bearings. Jaw plates and chick plates are made from highly wear resistance manganese steel. Fix jaw is fabricated from mild steel and fitted on machined surface of body. Oscillating jaw is fabricated from mild steel and fitted on hinge pin with low-pressure bearing. Hinge pin on center of crusher to help direct crushing without rubbing. Double toggle provide balance distribution of maximum load on eccentric shaft. Liter spring provide cushioning to the toggle, which is compensator for wear ant tear. Both flywheels are work as pulleys and reduce power requirement. Flat OD wheels are for flat belt drive and V-grooved wheels is for V-belt drive. Out let gap can be varied easily by add OR remove mild steel plates between toggle plate and main body.
