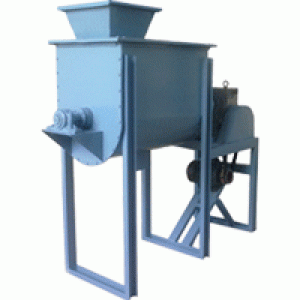

Ribbon Blender
Ribbon Blender Details
Ribbon Blender range and specification
Model | Motor (HP) | Useful Module(Liters) |
VRB-20000 | 60-75 | 20000 |
VRB-15000 | 50-60 | 15000 |
VRB-12500 | 40-50 | 12500 |
VRB-10000 | 30-40 | 10000 |
VRB-8000 | 30-40 | 8000 |
VRB-6000 | 25-30 | 6000 |
VRB-5000 | 20-25 | 5000 |
VRB-4000 | 20-25 | 4000 |
VRB-3000 | 15-20 | 3000 |
VRB-2000 | 10-15 | 2000 |
VRB-1500 | 10-12.5 | 1500 |
VRB-1000 | 7.5-10 | 1000 |
VRB-500 | 5-7.5 | 500 |
USE OF BLENDER
Blender is used to blend powder product like Pharmaceutical, Chemicals, Dyes, Pigments, Organics, Agricultures products, Minerals, Pesticides & Food products.
ABOUT RIBBON BLENDER
Prince Ribbon Blender is one kind of mixer to mix different powders. Horizontal mixer is precisely designed to maintain combination of three major dimensions is Diameter, Ribbon width and Pitch. It is for effective distribution of very small amount of additive added is getting effected and assures homogeneity of final output. Powder is got Rotary as well as horizontal motion in positive direction to get effective blending which is happen by design perfect sizing of inner and outer ribbons.
BENIFITS OF OUR DESIGN
We designed machine to help our customer to get very good productivity. Easy dismantle for cleaning and quick reassemble is possible by Fabricated U-trough, bolted ribbons and arms, Shaft on heavy duty bearing and housing, bolted End plates, bolted stuffing box.
Optional Features:
- Fluid coupling to start blender in loaded condition.
- Liquid spray arrangement.
- Material construction as per requirement.
- Special changes to fit in Layout.
- Special size on demand.
- Outer Jacket for hitting/cooling.
- Roster type Blender
