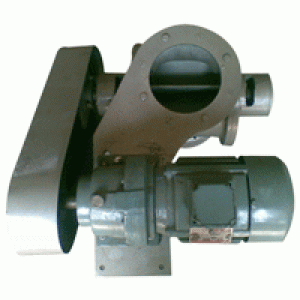

Prince Rotary Air Lock Valve range and specification:
Prince Rotary Air Lock Valves are available in range of Rotor dia 100mm to 450mm.
Discharge volume 0.5 M3/hr to 100 M3/hr can be achieved.
Use of Rotary Air Lock Valve:
Prince Rotary Air Lock Valve for discharge dry Powder, solids and Granules. It is for uniform discharge or regulate feed rate from silo. Designed to place between equal of different pressure system. It is also useful to feed material into pneumatic system with minimum air leakage.
About Rotary Air Lock Valve :
Material is received from top in Rotary Air Lock Valve. Fills volume between rotor vanes and discharge at bottom side. Material is discharge without air leakage. It can be mount directly on bottom flange of silo of outlet spout.
Rotary Air Lock Valve design:
Rotary Air Lock Valve consists flange mounting type housing, rotor and rotor shaft. Rotor is fitted inside housing. Rotor rotates in bush bearings. Stuffing box with gland packing is provided both sides to prevent material leakage. Rotor is driven by geared motor and chain sprocket.
Available options:
Different design and construction of material for vanes and housing are offer for different application.
After sales service support :
PRINCE INDUSTRIES can provide full range of field service and engineering support. Staff of company is available to assist customer with instructions, installation, start-up, and maintenance.
All the data given are nominal only. It may vary widely from case to case depending
upon many factors.
