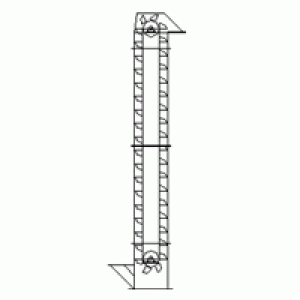

Centrifugal Bucket Elevator

Prince Bucket Elevator range and specification

Prince bucket elevators are available in different size and shape of buckets. Housing and bucket size can be decided based on material lifting rate. Range of height up to 30 meter.

Use of Bucket Elevator

Prince Bucket elevator is for reduce manpower (atomization), increase efficient & productivity, It is useful to elevate powder, granules, seeds and lumpy material from bottom to required height. Continuous or positive discharge type elevator lifts material in close casing.
It is generally use for foodstuffs, seeds, grains, ice, chemicals, cereals, minerals and coal.

About Bucket Elevator

Material is fed at bottom through hopper. Bucket is fill by material. Bucket lift material from bottom to upward and throw out from casing through discharge spout. Material is discharge in other machine or collects at desired height.

Bucket Elevator design

Bucket elevator consists series of buckets fixed on chain or belts. Bottom and over-head pulleys operate Chain or belt. Pulley is driven by drive. Length and vibration of belt is adjusted by take-up. Buckets, belt and both pulleys are enclosed in steel casing.

Optional Features

Available selection are bucket type, drive, chain or belt, take-up, discharge, housing and construction of material and mounting etc.>

After sales service support

PRINCE INDUSTRIES can provide full range of field service and engineering support. Staff of company is available to assist customer with instructions, installation, start-up, and maintenance.
All the data given are nominal only. It may vary widely from case to case depending upon many factors.
