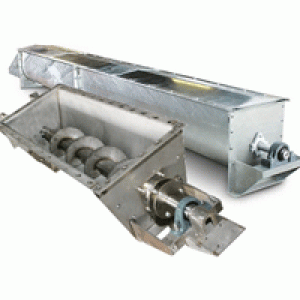

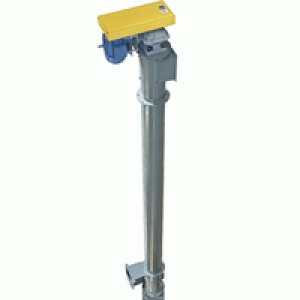

Screw Conveyor

Prince Screw Conveyor / Feeder range and specification.

Prince screw conveyor or material feeder are available in many different dia and length. We have supply screw min. Dia. 100 mm to 600 mm, in min. length 300 mm to 30000 mm. Motor HP and out put is totally depends on fed material. It can be design as per output requirement. Out put can be adjust as per requirement. All the data given are nominal only. It may vary widely from case to case depending upon many factors.

Use of screw conveyor / Feeder

Prince Screw conveyor is for is for reduce manpower (atomization), increase efficient, increase productivity, reduce wastages and nullify dusting. It consume low power consumption It convey or feed various dry solid material for any dry powder, small ice cube, seeds, minerals, sand, cement, ceramics, fertilizers, spices, plastic granules/powder etc. Different example of screw use: To discharge bin to load into blender or soil at height. Connect outlet of one machine to inlet of other machine. Screw feeder are small size. It is used for feed material in any machine. Main purpose of feeder is uniform material feeding for increase product quality and productivity.

About Screw Conveyor / Feeder

Material is fed on end and it is conveyed by spiral flight towards other end. It is for convey material horizontal, vertical and incline in bulk from one place to other. Outer shell is made from round Pipe OR U-trough. Screw flights welded on heavy-duty pipe. Shaft is connected to screw pipe, rotates in bearings. Both side bearings are mounting in bearing housing. Stuffing box are provided both end to prevent leakages. Screw is rotate through suitable size gearbox, motor and sprockets. To support longer screw, hanger bearing is placed wherever require. Different screw flight like spiral, paddle, cut & folded, ribbon, etc.

Optional Features

SS material, Outer jacketed for cooling or heating, Bottom bush. Bush (bearing) for pharmaceutical, and mounting as per customer layout.

After sales service support

PRINCE INDUSTRIES can provide full range of field service and engineering support. Staff of company is available to assist customer with instructions, installation, start-up, and maintenance.
